| ominal Pipe Size (NPS) |
Outside Diameter at Bevel D |

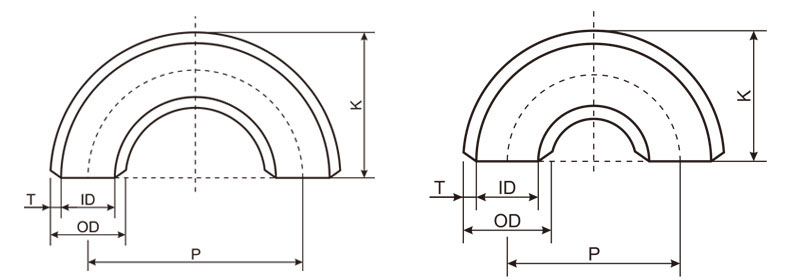

Long Radius Elbows | Short Radius Elbows | ||
| Center to Center P |
Back to Face K |
Center to Center P |
Back to Face K |
||
| 1/2 | 21.3 | 76.2 | 47.8 | — | — |
| 3/4 | 26.7 | 76.2 | 50.8 | — | — |
| 1 | 33.4 | 76.2 | 55.6 | 50.8 | 41.1 |
| 1-1/4 | 42.2 | 95.2 | 69.8 | 63.5 | 52.3 |
| 1-1/2 | 48.3 | 114.3 | 82.6 | 76.2 | 62.0 |
| 2 | 60.3 | 152.4 | 106.4 | 101.6 | 81.0 |
| 2-1/2 | 73.0 | 109.5 | 131.8 | 127.0 | 100.1 |
| 3 | 88.9 | 228.6 | 158.8 | 152.4 | 120.7 |
| 3-1/2 | 101.6 | 266.7 | 184.2 | 177.8 | 139.7 |
| 4 | 114.3 | 304.8 | 209.6 | 203.2 | 158.8 |
| 5 | 141.3 | 381.0 | 261.9 | 254.0 | 196.9 |
| 6 | 168.3 | 457.2 | 312.7 | 304.8 | 236.5 |
| 8 | 219.1 | 609.6 | 414.3 | 406.4 | 312.7 |
| 10 | 273.1 | 762.0 | 517.7 | 508.0 | 390.7 |
| 12 | 323.9 | 914.4 | 619.3 | 609.6 | 466.9 |
| 14 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 18 | 457.2 | 1371.6 | 914.4 | 914.4 | 685.8 |
| 20 | 508.0 | 1524.0 | 1016.0 | 1016.0 | 762.0 |
| 22 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
‘’
| A860 WPHY 65 180deg elbow | A860 WPHY 65 180deg elbow – Standard Specification for Wrought High-Strength Low-Alloy Steel Butt-Welding Fittings | ||||
| Material Grade | WPHY 42 | WPHY 46 | WPHY 52 | WPHY 60 | WPHY 65 |
| WPHY 70 | |||||
| Product Form | |||||
| ASME B16.9 | Size:1/2″-48″ Wall thickness:SCH5S-SCHXXS | ||||
| ASME B16.28 | Size:1/2″-24″ Wall thickness:SCH5S-SCHXXS | ||||
| MSS SP43 | Size:1/2″-24″ Wall thickness:SCH5S-SCHXXS | ||||
| MSS SP75 | Size:16″-60″ Wall thickness:SCH5S-SCHXXS | ||||
