Pipe Tee,Lateral tee ,Reducer tee,cross tee, Minimizing tee, Tee fittings accord to DIN, ISO, JIS ,ANSI Standards, Measures 1/2 to 64 inch.
A tee can also be referred to as triplet,three way and "T" pieces and it may be utilized to either combine or split a fluid flow. Most common are pipe tees with all the exact same inlet and outlet size, but 'reducing' pipe tees are available at the same time. it implies the a single or two ends are differ in dimensions.on account of thisdimension differ,the makes the pipe tee steel fittings with all the capacity to handle the volume when requried.

 By the shape of a steel pipe tee, the wall thickness is usually a vital item. ASME B16.9 only standar the end-to-end dimensions, center to end dimensions and some “squareness” sizing tolerances. The wall thickness in the weld line location even is standardized, but not via the rest of the fitting. The common states that the minimal tolerance might be inside 12.5% from the minimum bought wall thickness of your pipe. A maximum tolerance is specified only in the ends of the fitting.

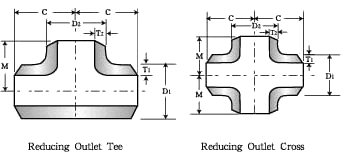

Pipe tee & crosses size



Numerous suppliers of welding tees (and elbows) offer one particular timetable greater density in order that adequate wall structure fullness, after developing, continues to be. In Tee’s, the crotch radius (T) differs from one maker to another one, however, many create by itself being a requirement, 1.three times the wall thickness to keep up the crotch.
