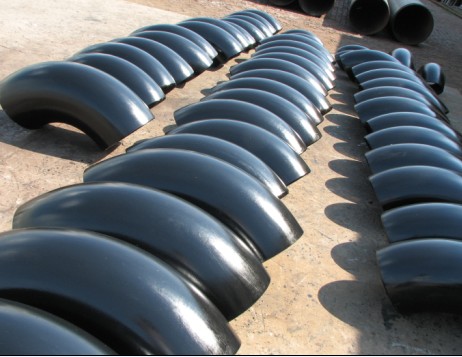

Elbows and Bends
1)Steel pipe elbow and bend
2)LR ,SR elbow
3)Size:1/2-144 inch
4)WT:1-160mm
5)Standard:ANSI,JIS,DIN
Carbon Steel 90 Degree Pipe Fitting Elbow Bend
Stainless steel Pipe Fitting Bend,
Carbon Steel Pipe Fitting Bend,
Alloy Steel Pipe Fitting Bend
steel pipe elbow and bend
|
|
Welded |
Seamless |
|
Nominal Size |
DN250-DN1800 |
DN15-DN700 |
|
Wall Thickness |
STD,XS,XXS,SCH10,SCH20,SCH30,SCH40,SCH60,SCH80, SCH160,ETC |
|
|
Bending Radius |
LR30,45,60,90,180 SR30,45,60,90,180 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D. |
|
|
Bending Angle |
30°45°90°180° |
|
|
Standard |
||
|
ASME |
ANSI B16.9,ANSI B16.28,MSS SP75 |
|
|
DIN |
DIN2605,DIN2615,DIN2616,DIN2617,DIN28011 |
|
|
SGP |
JIS B2313 |
|
|
EN |
EN10253-1,EN10253-2 |
|
|
Material |
||
|
ASTM |
Carbon steel:A234 WPB |
|
|
StainlessSteel:A403WP304,A403WP304L,A403WP316, A403WP316L,A403WP321 |
||
|
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
|
DIN |
Carbon steel:St37.0,St35.8,St45.8 |
|
|
Stainless steel:1.4301,1.4306,1.4401,1.4571 |
||
|
Alloy steel:1.7335,1.7380,1.0488(1.0566) |
||
|
JIS |
Carbon steel:PG370,PT410 |
|
|
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 |
||
|
Alloy steel:PA22,PA23,PA24,PA25,PL380 |
||
|
GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
|
|
Surface treatment |
Transparent oil, rust-proof black oil or hot galvanized |
|
|
Packing |
in wooded cases or pallets,or as for clients' requirements |
|
|
Applications |
Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc |
|
|
Certification |
API, CCS, and ISO9001:2000 |
|
|
Min order |
1 piece |
|
|
Delivery time |
7 after receipt of advanced payment |
|
|
Payment Term |
FOB(30% down payment in advance, the balance before shipment) CIF or C&F(30% in advance , the balance against with the copy of B/L) |
|
We can produce according to your specific requirements.
Our products :carbon steel ,alloy steel ,stainless steel eblow and bend fittings
such as: long/short radius elbows(EL/ES),straight / reducing tee(TC/TR) ,SO ,WN,PL,BL,SW,TH flanges,pipe end cap,eccentric/concentric reducers
The sizes:
|
Elbow |
DN15~DN3600 |
|
Flange |
DN15~DN3600 |
|
Tee |
DN15~DN3600 |
|
Reducer |
DN15~DN3600 |
|
Seamless Steel pipe |
DN15~DN1200 |
|
ERW |
DN15~DN1400 |
|
SSAW |
DN200~DN3600 |
|
LSAW: |
DN300~DN1400 |
|
Wall thickness: |
1mm~160mm |

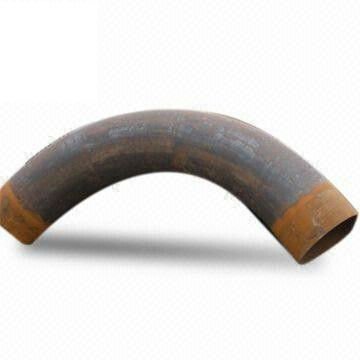

Elbow Bends
1.certificate:ISO9001/2000
2.standard:ASTM A234 WPB B16.9,B16.25
3.Bending Radius:1D 2D to 1D

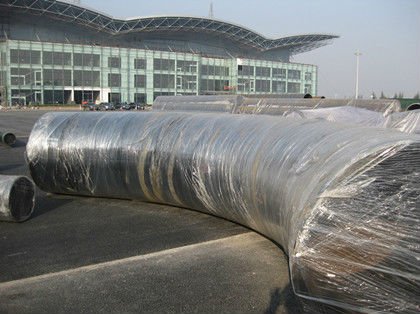

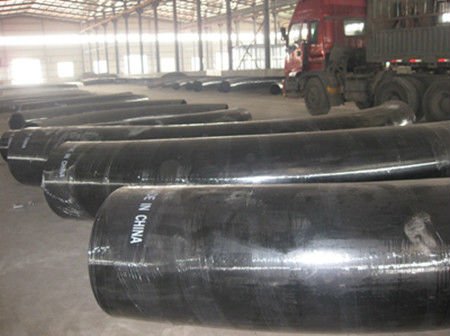

Long And Short Carbon Steel Bend Elbow
R=1D To 10D From 1/2" to 72" With Seamless And Welded
A234/A53 WPB B16.9/B16.25/B16.49
ERW Welded Pipe with Q235B Q345B 16Mn API 5L X42/X52/X60/X70
SPRIAL Pipes with Q235B Q345B 16Mn API 5L X42/X52/X60/X70
LSAW SSAW
Used In The Oil,Gas,Water,Bridge,Stadium,Air port And So On.
|
Material |
carbon steel stainless steel and alloy steel pipe |
|
Technique |
forged |
|
Connection |
welding |
|
Head code |
bevel the end |
|
Size |
1/2 to 48-inch/DN15-DN1200 |
|
Angles |
30, 45, 60, 90, and 180° |
|
WT |
Sch5-Sch160 ,such as SCH20, SCH40, STD, SCH80, SC100, SCH120, and SCH160 |
|
Standard |
ANSI,ASME,API5L,DIN,JIS,BS,GB |
|
Specification standards |
ANSI B16.9, ANSI B16.28, JIS B2311, DIN 2605, 2615, 2616, and 2617 |
|
Material |
carbon steel, alloy steel, and stainless steel |
|
Types |
45 and 90° LR/SR elbows, 180° returns, straight, reducing tees, caps, concentric and eccentric reducers |
|
Radius Of Curvature |
1D-10D ANSI,ASME,API5L,DIN,JIS,BS,GB |
|
Surface treatment |
black paint, varnish, rust-proof oil, and hot-dipped galvanized |
|
Range Of Application |
Chemical industry, petroleum industry, construction industry, domestic installation and other |
|
Certificates |
ISO-9001/2000 |
|
Special design available as requirement |
|
If you are interested in our goods, you can contract me directly. Welcome to your inquiry.
