Induction Bend

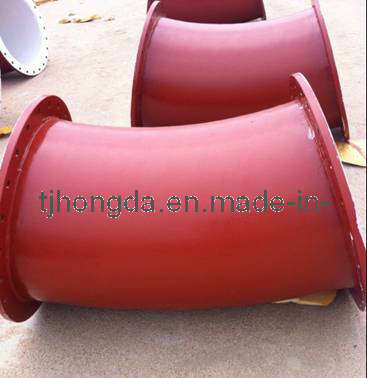

 Pipe Bend

Our pipe bends are widely used in large engineering projects. For example, our X80 X70 hot-bending bends for West-to-East Gas Transmission Project and Sichuan-to-East Gas Transmission Project have earned trust and praise from our customers.
Our commonly used raw materials are A53GR. B, A106B, API 5L GR. B, X42, X46, X52, X56, X60, and X65, also could be made from alloy steel and stainless steel.
Size
Seamless bend: 1/2"~24" DN15~DN600


Welding bend: 6"~60" DN150~DN1500

Wall Thickness

Sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,

Sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s

Max. Wall thickness: 200mm

Materials

Carbon steel: ASTM/ASME A234 WPB-WPC

Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911

Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6

High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

Standards

SY/T5257-2004

DL/T515-2004 GD2000 GD87-1101

ASME B16.49-2007 ASME B16.25-2007

Industrial Processes

Bending, squeezing, pressing, forging, machining and more

Industries Served

Our pipe bends are widely used in many industries, such as power generation, petroleum, natural gas, chemicals, shipbuilding, construction, papermaking, metallurgy and so on.

Specifications for Pipe Bend
 		 Production range
Seamless bends Welding bends
Outside diameter 1/2" ~24" 6" ~60"
Wall thickness 4mm~200mm
Bending radius R=2D~20D
Product angle 0° ~180°
